Sealing & Waterproofing Materials for Steel Structures: Enhancing Durability Through Detailing

Sealants, waterproofing membranes, flashing tapes, and weather-resistant detailing for steel roof and wall cladding. Learn material selection, weather resistance standards, and leak prevention strategies.

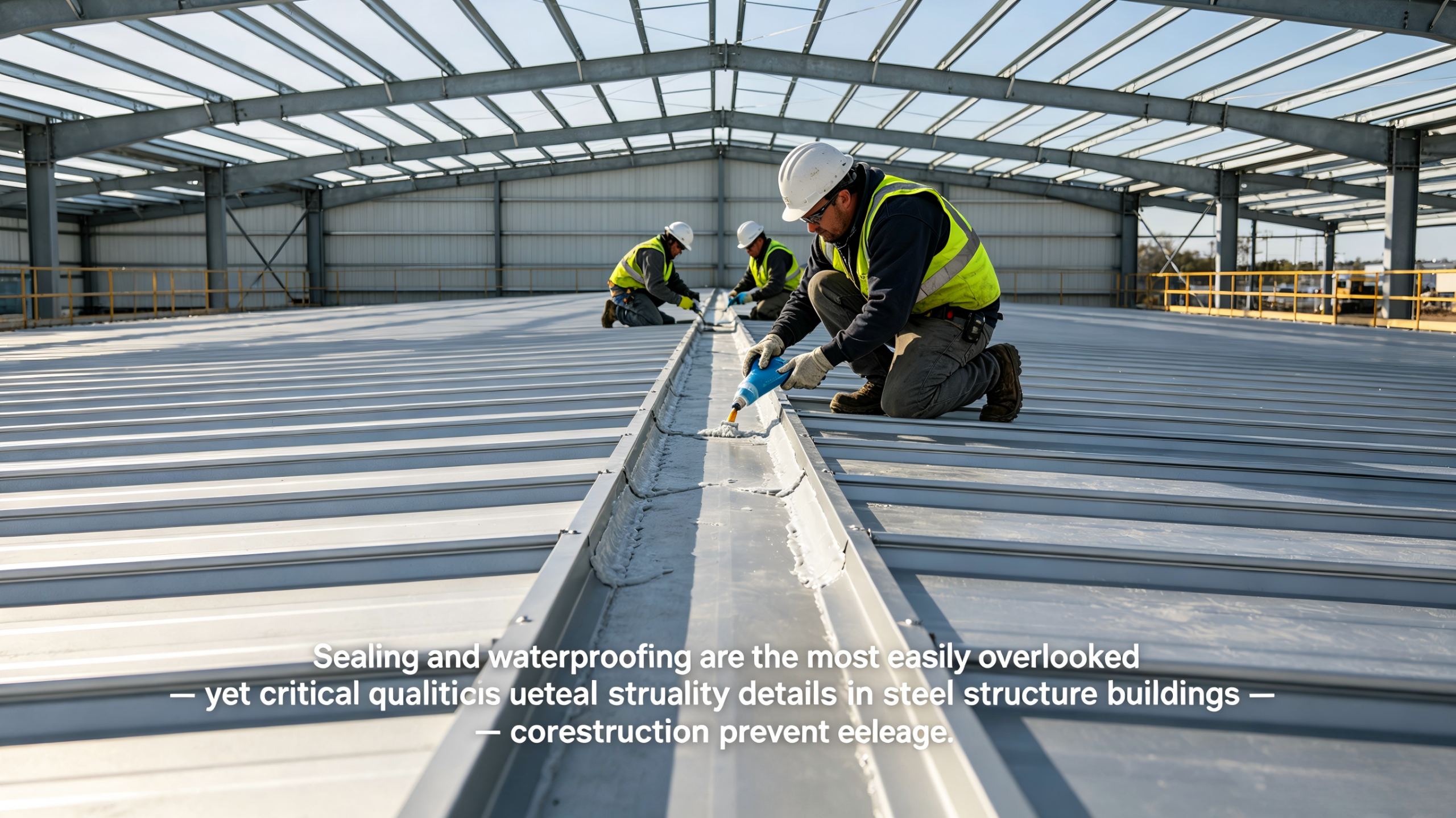

A steel building can have the strongest frame, the thickest insulation, and the most beautiful cladding. But if water gets in, none of that matters. Water infiltration leads to corrosion, insulation degradation, mold, and occupant complaints.

The difference between a leaky building and a dry one is not in the major structural components. It is in the details: sealants, flashing tapes, gaskets, and waterproofing membranes. These small materials are disproportionately critical to building performance and owner satisfaction.

For overseas clients, understanding sealing and waterproofing materials is essential for specifying the right products and ensuring long-term durability.

This guide covers:

• Types of sealants and their applications.
• Flashing tapes and membranes.
• Gaskets and weather stripping for fastener and panel laps.
• Weather resistance standards and testing.
• Detailing for roof penetrations, ridges, eaves, and wall openings.
• Linking to roofing and cladding installation quality.

1. Why Waterproofing & Sealing Matter for Steel Buildings

Water is the enemy of steel buildings through multiple mechanisms:

Problem	Mechanism	Consequence
Corrosion	Moisture + oxygen + steel = rust	Section loss, eventual perforation, structural weakening
Insulation degradation	Wet insulation loses R-value permanently	Higher energy costs, condensation risk
Mold & mildew	Organic dust + moisture = mold growth	Health complaints, building downtime
Freeze-thaw damage	Water trapped in joints freezes	Expansion cracks sealants and cladding
Aesthetic damage	Water stains, efflorescence, rust streaks	Poor appearance, reduced property value

The economics: A leak that costs $500tofixduringconstruction(additionalsealant,betterflashing)cancost$500tofixduringconstruction(additionalsealant,betterflashing)cancost5,000-15,000 to repair after the building is finished (interior damage, access difficulties, lost production).

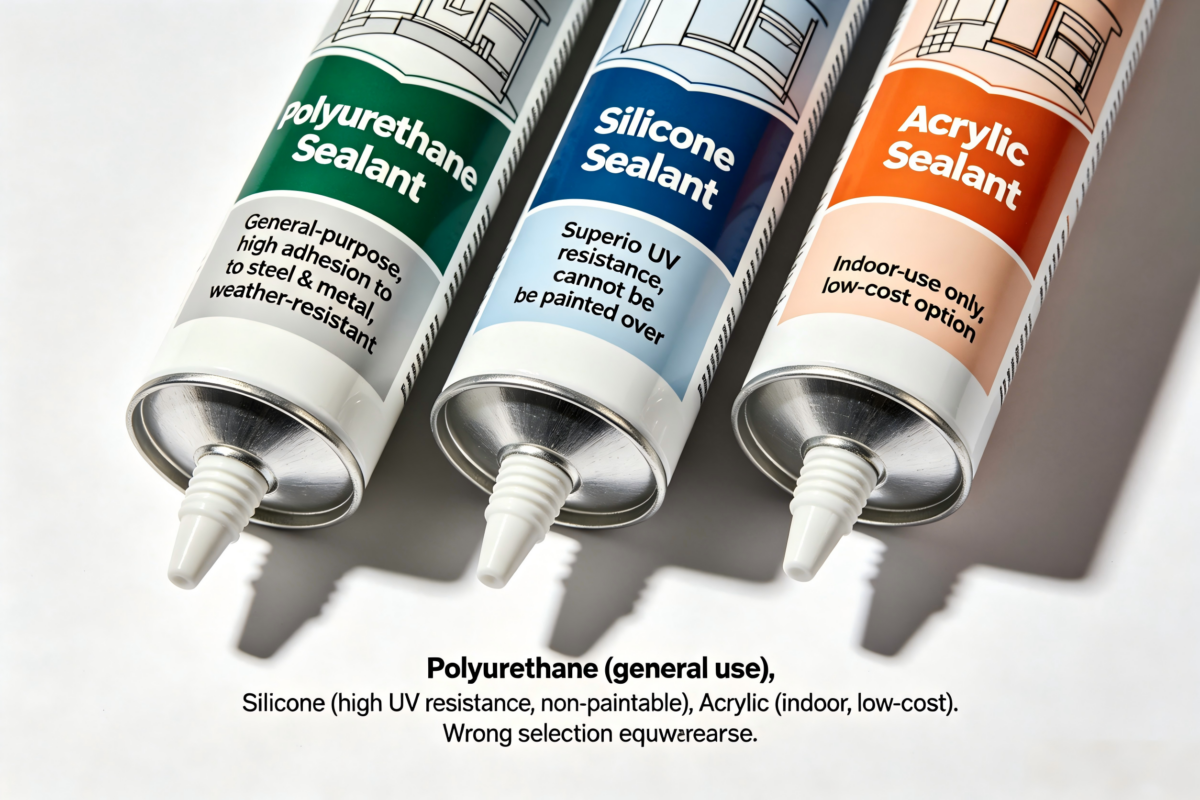

2. Types of Sealants for Steel Structures

Sealants are flexible materials applied to joints, seams, and penetrations to prevent water and air passage.

A. Polyurethane Sealants (Most Common for Steel Buildings)

Property	Value
Elongation	300-600%
Movement capacity	±25-35% of joint width
Temperature range	-30°C to +80°C
Adhesion	Excellent to steel, coated steel, Galvalume
UV resistance	Good (requires topcoat or formulation)
Typical life	10-15 years
Cure type	Moisture-cure (reacts with humidity)

Best for: Vertical and low-slope roof joints, wall panel laps, flashing to cladding, gutter seals.

Advantages:

• Excellent adhesion to most steel coatings.
• High movement capacity (accommodates thermal expansion).
• Paintable after cure.

Disadvantages:

• Requires primer on some surfaces (check manufacturer data).
• Moisture cure means limited working time in high humidity.
• More expensive than acrylics.

B. Silicone Sealants

Property	Value
Elongation	400-800%
Movement capacity	±30-50%
Temperature range	-50°C to +150°C
Adhesion	Excellent to glass, metal, some coatings (requires primer on some)
UV resistance	Excellent (best of all sealants)
Typical life	20-25 years
Cure type	Moisture or neutral cure

Best for: Roof panel laps (especially standing seam), skylight and glazing seals, exposed high-UV joints, metal to glass.

Advantages:

• Excellent UV resistance (does not chalk or crack).
• Highest temperature range.
• Very high elongation.

Disadvantages:

• Cannot be painted (silicone repels paint).
• More expensive than polyurethane.
• Requires specific surface preparation.

C. Acrylic (Latex) Sealants

Property	Value
Elongation	100-200%
Movement capacity	±7-15%
Temperature range	-20°C to +60°C
Adhesion	Good to many surfaces
UV resistance	Moderate to good
Typical life	5-10 years
Cure type	Water evaporation

Best for: Interior applications, low-movement joints, temporary sealing, touch-up.

Advantages:

• Lowest cost.
• Water cleanup (painter-friendly).
• Paintable.

Disadvantages:

• Low movement capacity (not for structural joints or thermal expansion).
• Shorter life.
• Not for immersion or ponding water.

Rule: Do not use acrylic sealants on exterior roof joints or cladding laps where significant thermal movement occurs.

D. Butyl Sealants and Tapes

Property	Value
Form	Gun-grade (paste) or pre-formed tape
Adhesion	Excellent (pressure-sensitive)
Movement capacity	Moderate (butyl tape: low; gun-grade: medium)
UV resistance	Poor (requires cover or over-sealing)
Typical life	10-15 years (protected from UV)

Best for: Hidden joints, lapped panel seams, flange-to-flange seals, gutter laps, under flashing.

Advantages:

• Excellent adhesion to oily or minimally prepared surfaces.
• Butyl tape is quick to apply (peel and stick).
• Remains flexible indefinitely.

Disadvantages:

• Poor UV resistance (will degrade and crack if exposed).
• Messy application (gun-grade butyl strings and smears).
• Difficult to remove.

3. Flashing Tapes & Self-Adhered Membranes

Flashing tapes are peel-and-stick membranes used for larger area waterproofing, roof penetrations, and critical transitions.

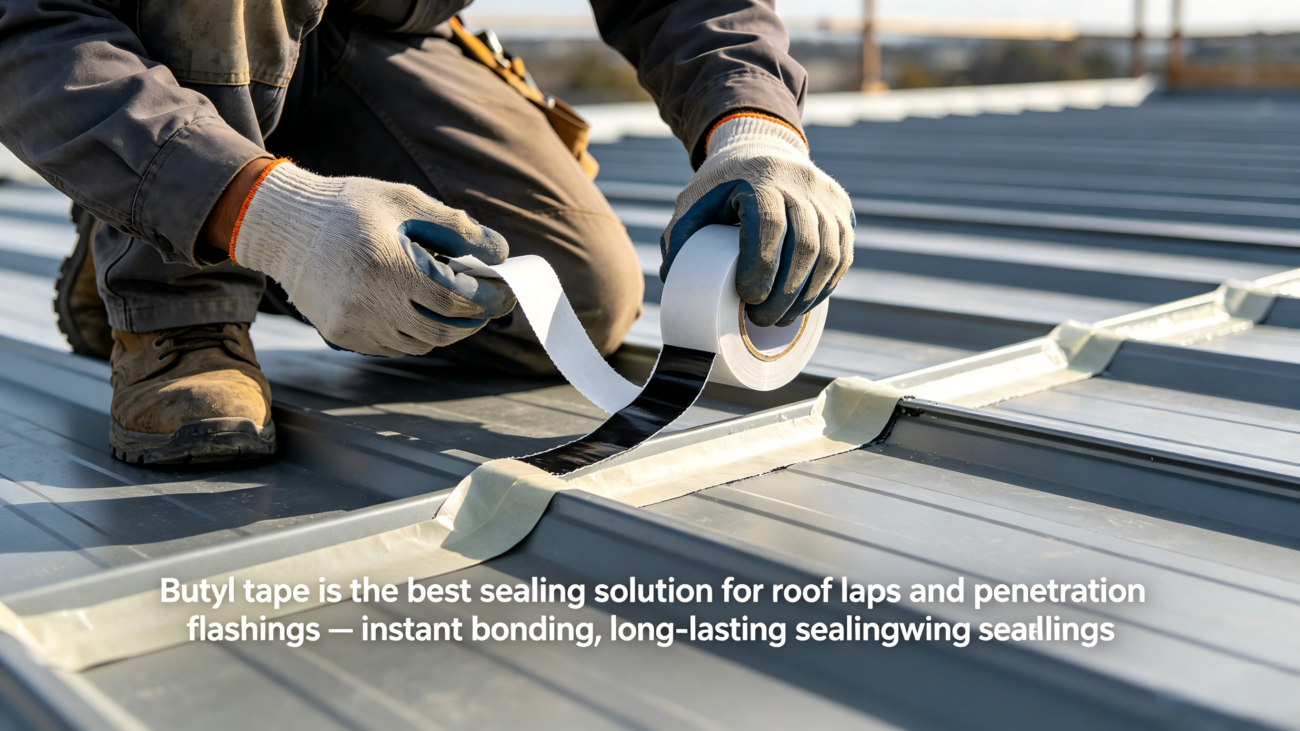

A. Butyl Flashing Tape (with aluminum or polymer backing)

Property	Value
Thickness	1.0-1.5mm butyl + 0.1mm aluminum or polymer film
Widths	50mm, 75mm, 100mm, 150mm, 200mm
Adhesion	Excellent to clean, dry steel
Temperature range	-20°C to +80°C
Lifespan	10-20 years (depending on UV exposure)

Applications:

• Roof penetration flashings (pipes, vents, HVAC curbs).
• Lap joints in roof membranes.
• Gutter and downspout connections.
• Ridge and eave details (under metal flashing).

Installation requirement: Surface must be clean, dry, and free of oil. Roll with pressure (hand roller recommended). Minimum application temperature typically 5°C.

B. Acrylic (Water-Based) Flashing Tape

Property	Value
Adhesion	Good to most steel coatings
UV resistance	Good (acrylic is UV-stable)
Lifespan	10-15 years
Application	Requires primer on some surfaces

Advantage: Can be applied to damp surfaces (unlike butyl, which requires dry).
Disadvantage: Less aggressive adhesion than butyl.

C. Rubberized Asphalt Membrane (Self-Adhered)

Used for low-slope roof systems, not typically for standing seam metal roofs.

Property	Value
Thickness	1.5-3.0mm
Application	Peel and stick to clean steel deck or rigid insulation
Lifespan	15-25 years
Fire rating	Class A (with top coating or cover board)

Best for: Low-slope (1/4:12 or less) metal roof decks, especially in commercial buildings.

4. Gaskets & Weather Stripping

Compressible seals installed at panel laps, fastener locations, and between components.

A. EPDM (Ethylene Propylene Diene Monomer) Gaskets

Property	Value
Temperature range	-40°C to +120°C
UV resistance	Excellent
Compression set	Low (springs back)
Lifespan	20-30 years

Applications:

• Standing seam roof clips (between clip and panel).
• Panel end laps (pre-applied foam tape).
• Gutter and downspout connections.
• Penetration flashings.

Forms: Pre-cut pads, continuous roll tape, extruded profiles (tubular or solid).

B. Closed-Cell Neoprene (CR) or EPDM Foam Tape

Property	Value
Cell structure	Closed (does not absorb water)
Compression	50-70% compressible
Temperature range	-30°C to +90°C
UV resistance	Good to excellent (EPDM better)

Applications:

• Thermal break between steel purlins and roof panels.
• Under flashing at ridges and eaves.
• Gutter support pads.

Note: Open-cell foam absorbs water like a sponge. Specify only closed-cell for exterior applications.

C. Pre-Applied Mastic (Butyl or Polyurethane)

Some panel systems come with pre-applied mastic strips on side laps and end laps. When panels are lapped, mastic compresses to form a seal.

Advantage: Fast installation (no field-applied sealant).
Disadvantage: If panels are separated and repositioned, mastic loses seal.

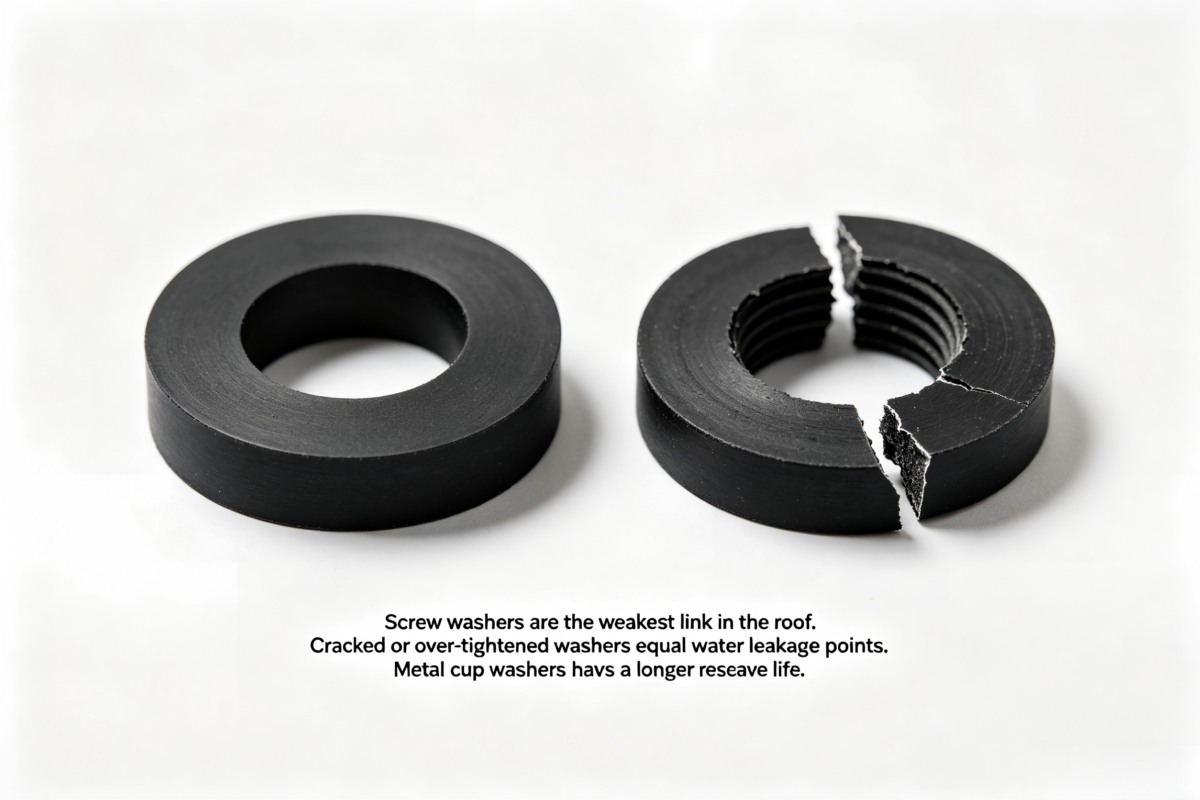

5. Fastener Sealing (Critical for Screw-Fixed Cladding)

The single most common source of roof leaks is not failed sealant on flashing—it is fasteners (screws) with damaged, missing, or degraded washers.

Fastener Type	Sealing Mechanism	Lifespan	Common Failure
Screw with EPDM washer	Washer compresses against panel surface	15-20 years	Washer cracks from UV or over-torque
Screw with neoprene washer + metal cup	Washer compressed within cup (protected from UV)	20-25 years	Cup corrodes, washer dries out
Standing seam (no exposed fasteners)	None (no fastener penetrates panel)	30+ years	Not applicable (superior system)
Screw with integral sealing compound	Compound flows around threads	5-10 years	Compound dries, cracks

Best practice for screw-fixed roofs:

• Specify screws with neoprene or EPDM washers in metal cups (washer protected from UV).
• Verify correct washer size (washer diameter must exceed hole size + panel rib width).
• Check gasket condition on every screw during installation.
• Do not over-torque (gasket should be slightly compressed, not extruded).

Signs of fastener sealing failure:

• Rust staining radiating from screw (water tracking under washer).
• Washer cracked or missing.
• Screw overdriven (gasket deformed outward).
• Screw underdriven (gasket not touching panel).

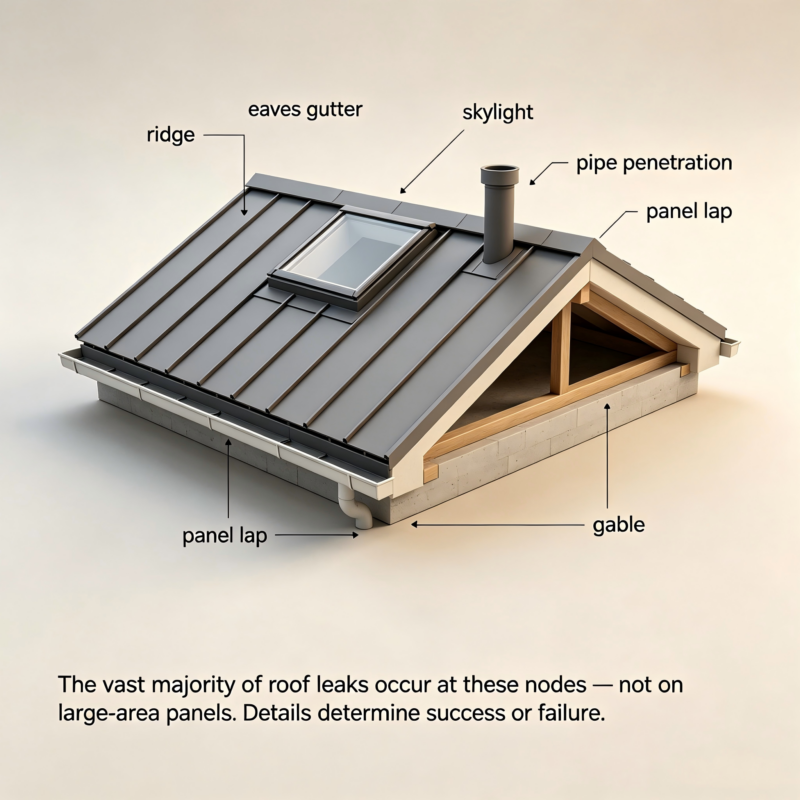

6. Details for Critical Leak Points (Roof)

Most roof leaks occur at specific details, not the middle of large flat panels.

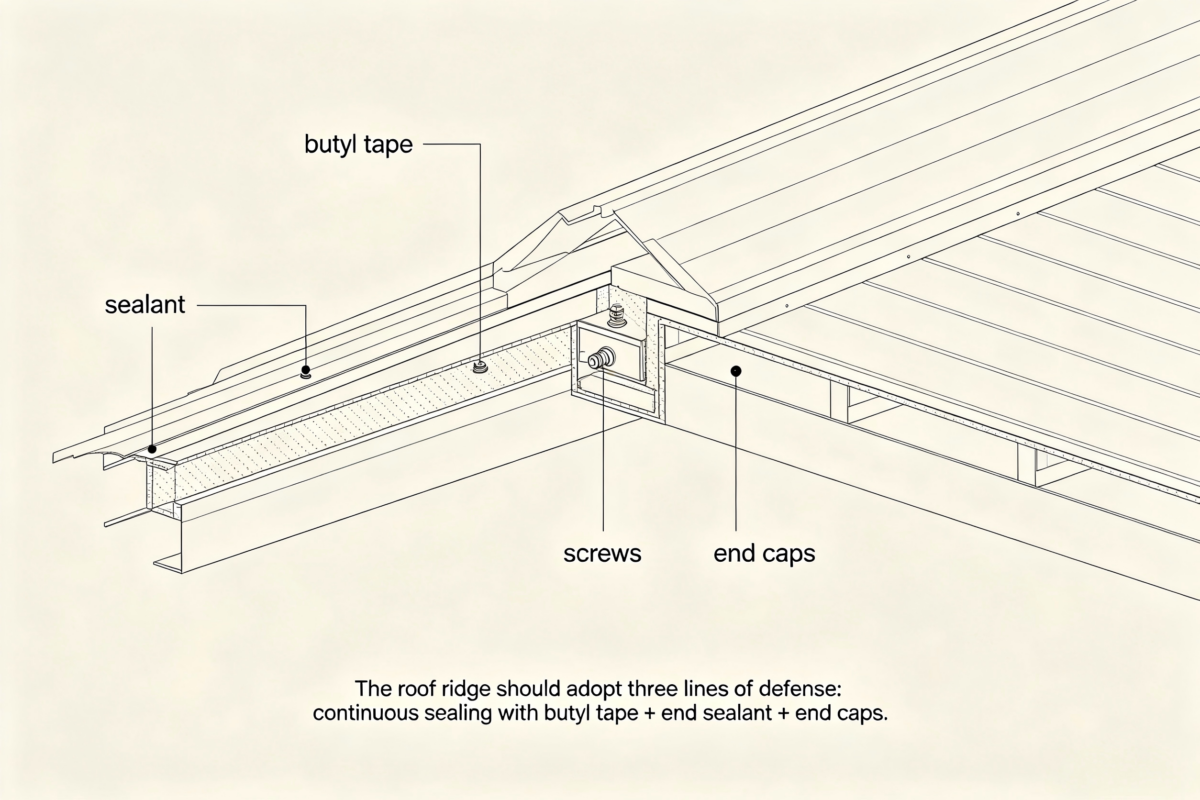

A. Roof Ridge

Detail	Sealing Requirement
Ridge cap to panel	Butyl tape or pre-applied mastic under ridge cap. Sealant at end closures
Ridge vent (if present)	Continuous closed-cell foam gasket between vent and panel
Ridge to gable end	End closure (pre-formed metal) sealed with sealant and screws

Common mistake: Ridge cap screws too widely spaced → cap lifts in wind, water driven under.

B. Eaves and Gutters

Detail	Sealing Requirement
Gutter to fascia	Butyl tape or sealant continuous along back of gutter. Screws at 300mm o.c.
Gutter lap joints	Butyl tape between sections + sealant at end laps
Downspout to gutter outlet	Sealant around outlet flange (or pre-formed gasket)
Eave trim to panel	Closed-cell foam filler at panel corrugations (prevents bird/insect entry + water)

C. Penetrations (Vents, Pipes, HVAC Curbs)

Penetration Type	Sealing Method
Round pipe (<300mm)	Boot-style flashing (EPDM or silicone) clamped to pipe, sealed to roof with butyl tape + screws
Rectangular duct / curb	Curb manufactured with integral flange. Butyl tape under flange. Sealant at flange-to-panel joint. Optional: self-adhered flashing tape over flange
Skylight	Silicone sealant between frame and panel. Butyl tape under frame. Some codes require secondary seal (flashing over frame)
Solar panel mounting	Avoid penetrations where possible (ballasted or clamp systems). If penetrated, use EPDM boots or custom flashing with sealant

Best practice for penetrations: One primary seal (butyl tape or gasket) + one secondary seal (silicone or polyurethane sealant) = redundant sealing.

D. Side Laps and End Laps (Panel-to-Panel)

Lap Type	Sealing Requirement
Side lap (vertical seam between adjacent panels)	Pre-applied mastic or field-applied butyl tape. Some systems use closed-cell foam gasket
End lap (upper panel overlapping lower panel)	Butyl tape across full width. Sealant at side lap intersections. Lap length minimum 150mm (6 inches)

Critical: End laps must be oriented so upper panel overlaps lower panel (shingle effect). Wrong orientation (lower over upper) guarantees leak.

7. Details for Wall Cladding

Walls are less leak-critical than roofs but still require attention.

Location	Sealing Requirement
Base of wall (cladding to foundation)	Z-flashing or base angle sealed to foundation with sealant or butyl tape. Backer rod for large gaps (>12mm)
Window and door openings	Flashing tape (peel-and-stick) around rough opening. Sealant between frame and cladding. Drip cap above opening
Inside and outside corners	Corner trim sealed with sealant at both edges. Backer rod if gap >6mm
Through-wall penetrations (pipes, conduits)	Boot or flashing plate sealed to cladding with sealant. Sealant inside penetration annulus
Horizontal lap joints (if horizontal panels)	Upper panel overlaps lower panel (shingle). Butyl tape in lap

8. Weather Resistance Standards & Testing

When specifying sealants and tapes, reference recognized standards.

Standard	Region	Scope
ASTM C920	USA	Specification for elastomeric joint sealants (Type S, Grade NS, Class 25 etc.)
ASTM D1970	USA	Self-adhering flashing for roof penetrations
ISO 11600	International	Building construction – joint sealants (Class F-25, G-25 etc.)
EN 15651	Europe	Sealants for facades, glazing, roofs
GB/T 14683	China	Silicone building sealant
GB/T 13477	China	Test methods for building sealants

Key parameters to verify on data sheets:

Parameter	Typical Requirement
Movement accommodation	≥±25% for roof joints (Class 25 or 25LM)
UV resistance	No cracking or chalking after 500-1000 hours accelerated weathering
Adhesion in peel	≥2 N/mm width (to coated steel)
Low-temperature flexibility	No cracking at -30°C (for cold climates)
Water immersion	No adhesion loss after 7 days immersion
Hardness (Shore A)	15-30 (soft and flexible)

9. Material Selection by Application

Application	Primary Seal	Secondary Seal	Notes
Roof panel side lap (exposed)	Pre-applied mastic or butyl tape	Optional (silicone at ends)	Avoid exposed sealant where possible (panel design)
Roof panel end lap	Butyl tape (full width)	Polyurethane at side lap intersection	Lap length ≥150mm
Ridge cap to panel	Butyl tape	Polyurethane at end closures	Screws through cap into panel
Penetration flashing to panel	Butyl tape under flange	Silicone or polyurethane around perimeter	Redundant seal
Gutter to fascia	Butyl tape (continuous)	None (if tape is continuous)	Screws through tape
Window to cladding	Flashing tape (peel-and-stick)	Silicone or polyurethane at frame	Flashing over sealant
Standing seam clip	Pre-attached EPDM gasket	None (clip is under panel)	Gasket thickness matched to clip design
Screw fastener	EPDM or neoprene washer in metal cup	None (washer is seal)	Verify washer condition
Through-wall pipe	EPDM boot with clamp	Polyurethane at boot-to-wall	Boot must be sized to pipe

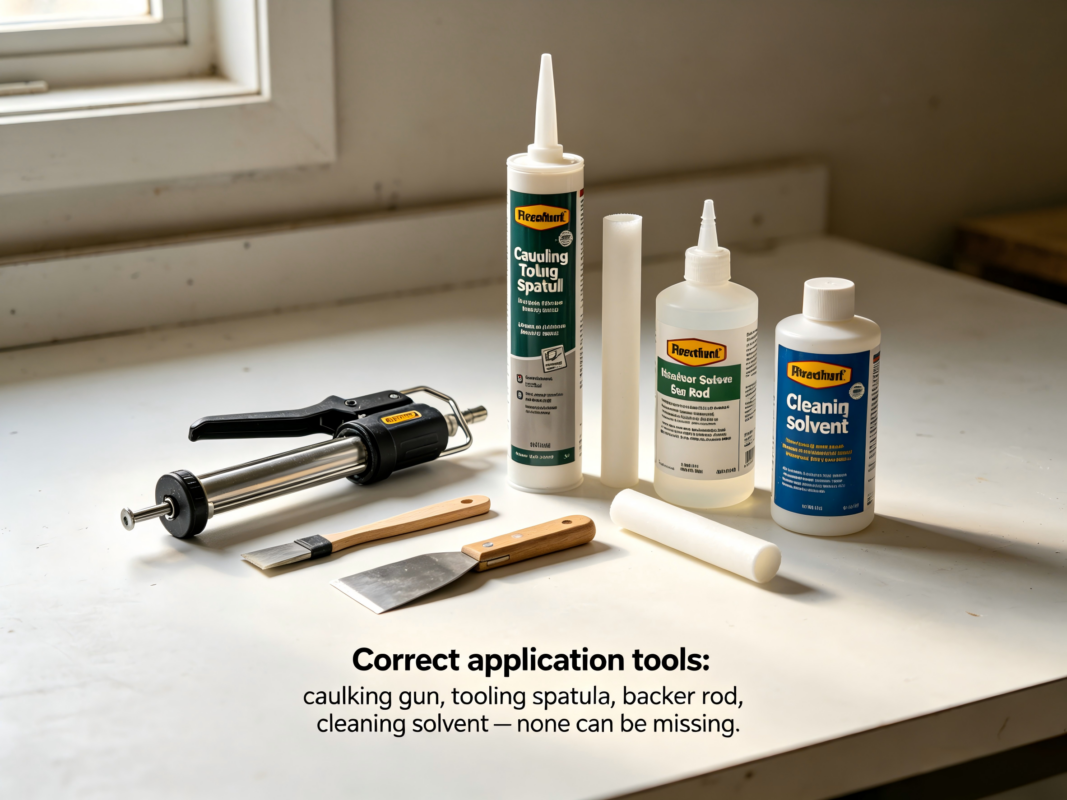

10. Application Best Practices

Sealant and tape performance depends heavily on correct application.

Practice	Requirement
Surface preparation	Clean, dry, free of oil, dust, loose coating. Use solvent wipe (acetone, isopropyl alcohol) for critical seals
Primer	Use manufacturer-recommended primer for difficult surfaces (some coated steels, weathered Galvalume)
Backer rod	Required for joints >6mm wide. Closed-cell polyethylene (not open-cell)
Tooling	Tool sealant into joint for adhesion (tooling also compacts sealant against surfaces). Smooth concave profile (not flat)
Minimum application temperature	Typically 5°C (40°F). For butyl tape, some products require >10°C
Working time	Polyurethane: 15-30 minutes. Silicone: 5-15 minutes. Acrylic: 20-40 minutes
Cure time	Polyurethane: 7-14 days (full cure). Silicone: 24-72 hours. Acrylic: 24 hours
Tooling fluid	Soapy water for polyurethane (prevents sticking). Isopropyl alcohol for silicone

Common application mistakes:

• No backer rod in deep joints → sealant extruded from back (three-sided adhesion) → sealant tears under movement.
• Over-tooling (excessive smoothing) → pushes sealant away from bond line.
• Under-filling joints (too thin) → sealant tears under movement.
• Applying sealant over dust, moisture, or frost → zero adhesion.

11. Sealant & Tape Lifespan (Realistic Expectations)

Material	Indoor / Protected	Outdoor (UV exposed)	Notes
Polyurethane	15-20 years	10-15 years	Topcoat extends life
Silicone	25-30 years	20-25 years	Best for UV exposure
Acrylic (latex)	5-10 years	3-5 years	Not for exterior roof joints
Butyl (protected)	15-20 years	5-10 years (if exposed)	Degrades rapidly in UV
Butyl tape (protected)	15-20 years	Not for direct UV	Excellent under flashings
EPDM gasket	20-25 years	15-20 years	UV resistant
EPDM screw washer	15-20 years	10-15 years	Washer in cup lasts longer
Closed-cell foam tape	15-20 years	10-15 years	UV degrades cell structure

Maintenance schedule:

• Year 5-7: Inspect all visible sealants and screw washers. Touch-up or replace as needed.
• Year 10-12: Re-seal critical joints (roof penetrations, ridges, gutters).
• Year 15-20: Plan for full sealant replacement and screw re-torquing or replacement.

12. Cost Control for Sealing & Waterproofing

Sealants and tapes are a tiny percentage of total building cost (typically 0.5-1.5%). But cost-cutting here is high-risk.

Cost Strategy	How to Implement	Risk if Cut
Use silicone for exterior (not acrylic)	Higher upfront cost, longer life	Acrylic fails in 3-5 years, leak repairs cost 10x
Standardize sealant types	One polyurethane for 80% of applications	Fewer products means less confusion, less waste
Pre-applied mastic on panels (factory)	Higher initial panel cost	Field-sealed laps are less reliable
EPDM washers in metal cups	Slightly higher screw cost	Exposed EPDM washers crack in UV
Butyl tape (not gun-grade butyl)	Faster installation, less mess	Gun-grade butyl slower, inconsistent thickness
Avoid over-specifying	Class 25 movement is enough for most steel roofs	Class 50 or 100 is unnecessary (costs more)

Value takeaway: Spend an extra 0.5% of total building budget on high-quality sealants and proper detailing. It is the cheapest insurance against the most expensive repair item (roof leaks).

13. Link to Steel Structure Roofing & Waterproofing Service

We treat sealing and waterproofing as a system—not an afterthought. Every joint, lap, penetration, and fastener is detailed on our shop drawings and verified during installation.

Our sealing and waterproofing scope includes:

• Design detailing: Ridge, eave, gable, penetration, and transition details with redundant seals.
• Material specification: Polyurethane or silicone sealants, butyl tapes, EPDM gaskets, and flashings. All with weather resistance certifications.
• Supply: Pre-cut flashing tapes, sealant cartridges, backer rod, primer, and screw fasteners with UV-resistant washers.
• Installation (for our full-service packages): Surface preparation, primer application, backer rod placement, sealant tooling, and quality inspection.
• Inspection only (for self-install): We can provide detailed drawings, material lists, and a sealed sample for reference.
• Quality documentation: Photos of critical seals before, during, and after application. DFT (for sealant bead dimensions). Leak testing (water hose) on completed roof prior to handover.

For overseas clients:
We can ship pre-cut and labeled flashing kits for each roof penetration (pipe boot, curb flashing, ridge closure). We provide a sealant application video specific to your building detailing. For full-service projects, we can include water hose testing in our quality sign-off.

👉 [Request a roofing and waterproofing quote]
Send us your roof and wall cladding drawings or panel specifications. Tell us your local climate (rainfall, temperature range, UV exposure). We will return a sealing material schedule, detailing drawings, and a budget price within 48 hours.

Summary Table: Quick Sealing Material Selection

Joint / Detail	Primary Seal	Secondary Seal (if needed)	Movement Capacity Required
Roof panel end lap	Butyl tape (50mm wide)	Polyurethane at lap intersection	±15%
Ridge cap to panel	Butyl tape	Polyurethane at end closures	±20%
Penetration to panel (flange)	Butyl tape	Silicone perimeter	±25%
Gutter to fascia	Butyl tape (continuous)	None	±10% (low)
Window to cladding	Flashing tape (peel-and-stick)	Silicone at frame	±15%
Standing seam clip (under panel)	EPDM gasket (pre-attached)	None	±30%
Screw fastener	EPDM washer (metal cup)	None	N/A (washer seals)
Interior seal (air barrier)	Acrylic	None	±7-10%
