Steel Warehouse Clear-Span Width: How Buyers Compare Frame Options Before Ordering
Choosing the clear-span width is one of the first structural decisions a buyer makes for a prefabricated steel warehouse, and it is also one of the most difficult to reverse after fabrication begins. The span determines how much storage space is column-free, how the roof and wall systems are supported, how heavy the primary frame becomes, and what the foundation must resist. Because the decision sits at the intersection of storage operations, material handling and structural economy, it deserves a structured comparison rather than a quick preference.
This guide is written for warehouse project owners, logistics managers, procurement teams and plant engineers who need to compare frame options with suppliers on a like-for-like basis. It explains the terms used in structural quotations, the operating inputs that should drive the span decision, the way a wider span changes the frame, foundation and envelope, and the documents a buyer should request before placing an order. The objective is a decision record that the project team, the structural supplier and the installation contractor can all work from.
Understanding the Terms: Span, Bay Spacing and Eave Height
For prefabricated steel buildings, the span is the distance between the main columns measured across the building, while the bay spacing is the distance between main frames measured along the length. The eave height is the vertical distance from the finished floor to the point where the roof slope begins at the wall line. Buyers frequently receive quotations that describe one dimension and assume another, so the first discipline is to write all three down with the same units and the same reference points before any comparison begins.
Ask the supplier to state whether the span is measured center-to-center of columns or clear between inner column faces, and whether the eave height is measured to the steelwork or to the underside of the roof purlins. These small differences change usable volumes, wall panel lengths and the appearance of the final building. A clear dimensional statement at the start prevents the most common source of confusion in warehouse quotations.
Why Column-Free Space Matters to Storage Operations

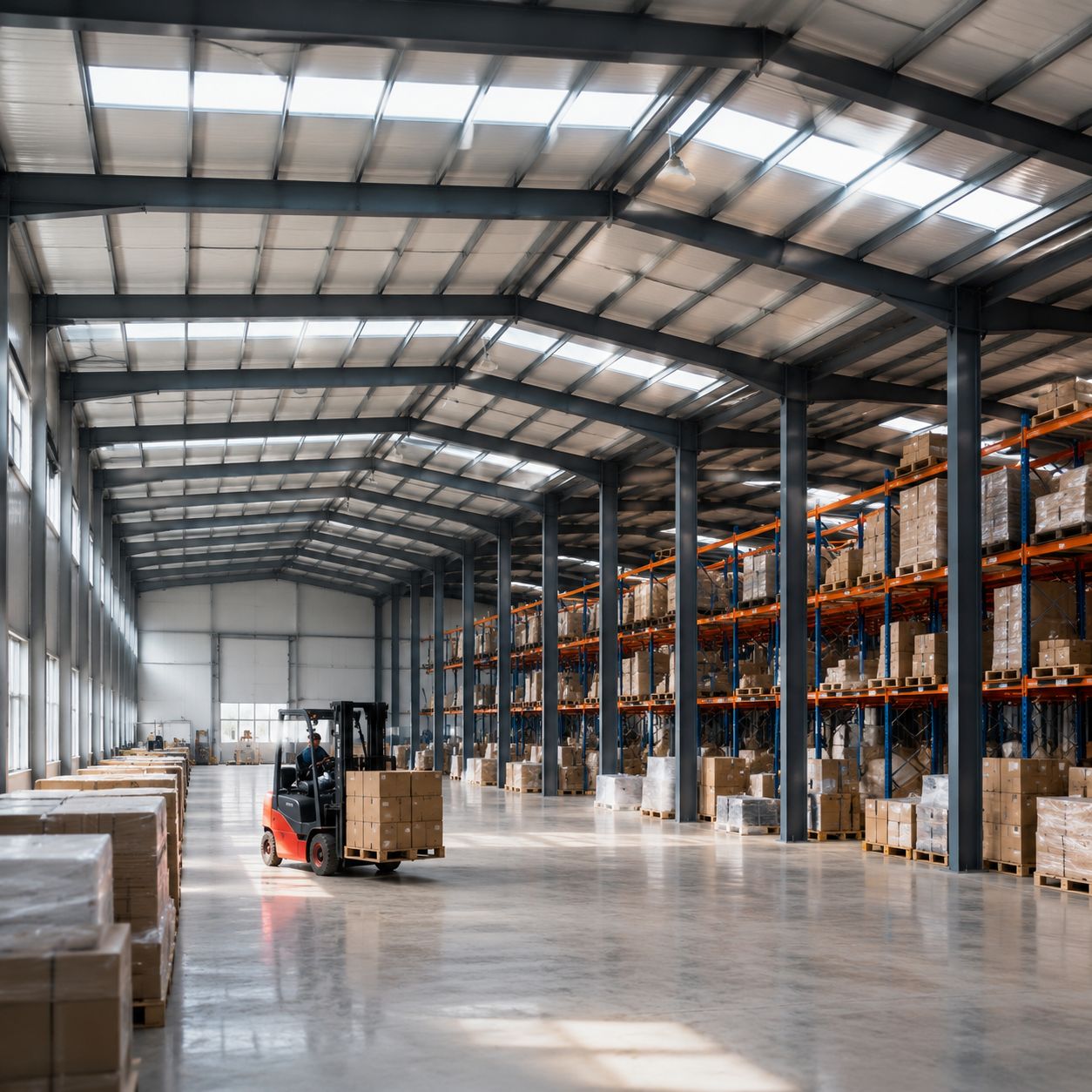

The practical benefit of a wide clear span is that the floor inside the warehouse can be arranged around the operation rather than around the structure. Racking runs, forklift aisles, staging areas and future reconfiguration all become easier when columns do not interrupt the floor plan. For a storage operation, every column position is a potential collision point, a loss of racking capacity and a constraint on aisle widths.
The buyer should map the proposed storage layout first and then ask what span keeps the main columns out of the working zones. In some layouts a moderate span with carefully positioned columns is fully acceptable, while in others the operation genuinely needs a column-free area for the full width. The decision should come from the layout drawing, not from a general belief that wider is always better.
Racking Layouts and the Clear Span They Require
Racking systems convert floor area into storage density, and their geometry is usually more rigid than the building geometry. Once racking bay widths, aisle widths and clearances are fixed, the warehouse length and the position of columns are largely determined. A racking plan drawn at full scale will quickly show where a column would block a rack bay or reduce an aisle to a dangerous width.
Share the racking plan with the structural supplier before asking for frame options. The supplier can then propose bay spacing and span combinations that keep columns clear of the racking footprint, and can explain the structural consequence of each alternative. Without the plan, the quotation is based on guesses about the operation and will usually need revision later.
Vehicle Circulation and Loading Bay Geometry
Forklifts, reach trucks, pallet jacks and delivery vehicles each need defined travel zones, turning radii and clearance above the floor. A wide clear span gives the layout designer freedom to place receiving, storage and dispatch zones without steering traffic around columns. Narrower spans force aisles to align with the frame spacing, which may create pinch points at doors and staging areas.
Confirm the largest vehicle that will enter the building, the height of its load, and the turning path it needs near the loading doors. The eave height, door size and internal clearance all follow from these operating facts. The span decision should be tested against the vehicle turning template, because a building that is dimensionally correct on paper can still be impractical for the equipment that uses it.
Mezzanines, Offices and Mezzanine-Loaded Spans
Many warehouse projects include an internal mezzanine for offices, packing stations or light assembly. A mezzanine introduces intermediate columns and a second floor level, and it changes the way the main span is used. The buyer should decide early whether the mezzanine is part of the structural package or a separate supplier scope, because the interface at the main frame connection must be coordinated in the drawings.
When a mezzanine is planned, ask whether its columns can be placed independently of the main frame or must align with the main columns. This affects the span layout and the delivery sequence. If the mezzanine may be added later, the main frame should be reviewed for the extra load and the connection points should be reserved in the design without assuming they will be used.
How Wider Spans Change the Primary Frame
As the clear span increases, the primary frame must carry more bending and the roof structure must span further between supports. The result is deeper sections, larger connection plates, more bolts and heavier foundations at the column bases. These changes are normal and predictable, but they should be visible in the proposal rather than hidden inside a single package price.
The buyer does not need to design the frame, but should understand that a modest increase in span can produce a disproportionate increase in steel weight at certain widths. Ask the supplier to show the frame weight and the foundation reactions for each span option under consideration. Comparing these values across options is the most honest way to see what the clear-span decision actually costs.
The Relationship Between Span and Roof Structure
The roof is the largest exposed surface of a warehouse, and its structure is directly affected by the span. At wider spans the roof steel, purlins and bracing carry greater loads and the roof system may need deeper members. The roof also controls rainwater drainage, daylighting and insulation, so the span decision influences how these functions are delivered.
When comparing span options, ask how the roof drainage is organized at each width, whether the roof slope remains the same, and how the purlin spacing changes. A wider span often means longer roof sheets and fewer ridges, which can simplify drainage but may complicate thermal movement. These details belong in the proposal so that the buyer compares the complete roof package, not just the primary frame.
Foundation Loads and Ground Conditions at Large Spans
The foundation is designed from the loads the structure delivers to the ground, and wider spans increase the forces at the column bases. The quality of the ground, the depth of suitable bearing strata, the groundwater level and the local authority requirements all influence how much foundation work is needed. A buyer who knows the site conditions early can avoid paying for a frame design that cannot be supported economically.
Before the frame options are compared, share the available soil information with the structural supplier and confirm what additional site investigation is required. The quotation should state which foundation assumptions it contains and which civil works are excluded. This prevents the surprise of a building price that is complete on paper but missing the foundation package entirely.
Envelope Costs That Follow the Span Decision
The wall and roof cladding is priced per square metre, so the envelope cost follows the building’s surface area more than its span. A wider span at the same floor area can reduce the number of internal columns but does not remove wall and roof area. Buyers should therefore treat the envelope as a separate line in the comparison rather than assuming it scales with the frame.
At the same time, the span affects envelope details such as the length of wall panels, the number of flashing joints and the position of expansion considerations. Ask the supplier to itemize the roof and wall system, insulation, gutters, downpipes and trims for each span option. A line-by-line envelope breakdown makes the cost comparison meaningful and reveals scope differences between bidders.
Erection Equipment and Site Constraints
Wider spans usually mean longer and heavier structural members, which require larger lifting equipment and more space on site for temporary storage and assembly. The erection method is therefore a practical constraint on the span choice. A buyer with a tight site, restricted crane access or limited laydown area should confirm with the supplier how the proposed frame will be erected before committing to a large span.
Ask whether the main frame members arrive as single pieces or are split into smaller transportable segments, and how the site joint is designed. Also confirm the weight of the heaviest piece so the erection contractor can plan crane capacity. These questions turn a theoretical span decision into a site-ready plan and reveal costs that are often absent from the building quotation.
Future Flexibility versus Today's Requirements
Warehouses are rarely bought for a single fixed operation. Storage densities change, product mixes shift, and businesses expand. A wider clear span gives the operation room to adapt, but it costs more today. The buyer should decide how much future flexibility is genuinely worth paying for and document that decision rather than leaving it to guesswork.
Ask the supplier how the frame can be extended at the end wall, how additional bays can be added, and how internal changes such as new mezzanines or doors would affect the structure. A frame designed with future extension in mind is not necessarily more expensive, but it requires the decision to be made early. Write the extension intent into the project brief so the design can preserve it.
Comparing Proposals: Steel Weight Is Not the Whole Story
When several suppliers quote the same warehouse, the buyer will see different frame weights, different section sizes and different package boundaries. Comparing only the total price hides the real differences, while comparing only the steel weight ignores foundations, envelope and erection. The useful comparison is a scope-normalized table that lists what each proposal includes and excludes.
Build the comparison around the operating brief: the same span, eave height, loading assumptions, envelope system and delivery scope for every bidder. Ask each supplier to confirm their assumptions in writing, including design codes, wind and snow loads, and corrosion protection. A proposal that documents its basis is easier to evaluate; a proposal that hides its assumptions is a risk regardless of price.
Questions to Ask Before Signing a Frame Contract
Before the order is placed, the buyer should confirm the design responsibility, the drawing deliverables, the material standards, the surface treatment, the packaging and the delivery schedule in writing. The contract should name the documents that form the basis of supply, including the approved layout, the frame drawings and the technical specification, so that later changes are managed against a fixed reference.
Ask who approves the anchor bolt setting-out drawings, who coordinates the foundation design, and what happens if the site dimensions differ from the drawings. Also confirm the payment milestones and what each payment releases, such as drawings, materials, fabrication records or shipment documents. These questions do not add cost; they prevent the cost of a poorly managed interface.
Documents the Buyer Should Receive with the Offer
A complete offer for a clear-span warehouse includes the layout plan, the frame arrangement, the section sizes, the connection philosophy, the foundation reaction loads, the envelope specification, the delivery breakdown and the erection method statement. If any of these documents are missing, the proposal is incomplete and should be treated as such.
The buyer should also receive a list of assumptions and exclusions, a schedule of drawing and approval dates, and a description of the quality records that will be provided with the shipment. Together these documents form the technical basis for the purchase and for the later factory and site inspections. A supplier who can produce a complete technical package is usually a supplier who can deliver the building.
How Bracing and Stability Systems Change with Span
Wide clear-span buildings rely on bracing and stability systems to resist wind, crane loads and the forces of erection, and the arrangement of these systems changes as the span grows. Roof bracing, wall bracing and the connection of the frame to the foundation all have to be designed so that forces travel to the ground without overloading any single member. The buyer should ask how the building is stabilized and where the bracing is located, because bracing positions affect the usable layout and the future movement of doors and services.
A stability system that is hidden inside a wide span can be perfectly adequate, but the buyer should see it on the drawings rather than discover it on site. Ask whether the bracing conflicts with the racking plan, the door openings or the crane runway, and how the supplier has resolved those conflicts. The stability scheme should be explained in the proposal in plain language, because it is one of the most important technical decisions in a wide building.
Loading Assumptions: The Design Basis Every Buyer Should Confirm
Every structural design is based on assumptions about the loads the building will face: the weight of the structure and envelope, the wind loads for the site, the snow loads if the location has snow, the seismic loads if the region is seismic, and the imposed loads from the operation. The buyer should ask the supplier to state these assumptions in writing and should check them against the conditions at the project site. A design based on the wrong wind speed or the wrong snow load is a design that may be unsafe or uneconomic.
Ask what design code the structure follows, what return period is used for the wind and snow values, and how the site exposure is treated. If the buyer’s engineer has a different loading basis, the difference should be resolved before fabrication rather than after. The loading assumptions are also the basis for the foundation reactions, so the civil designer needs the same document. Confirming the design basis is not a technical formality; it is the definition of what the building is designed to withstand.
Fire Protection and Compartmentation in Warehouse Layouts
Warehouses store goods, and stored goods can burn, so the fire strategy of the building affects the frame, the envelope and the layout. The structure must remain stable for the period required by the local regulations, and the building may need fire compartments, smoke control and escape routes. The buyer should confirm the fire requirements with the responsible authority before the design is finalized, because they influence the protection of the steelwork and the arrangement of the interior.
Ask the supplier how the steel protection is provided if required, whether by intumescent coating, board protection or a design that avoids the need, and how the protection is applied and maintained. Also confirm how the smoke ventilation and the escape routes are coordinated with the racking and the storage layout. A fire strategy that is designed in from the start is cheaper and more reliable than one that is added after the building is complete.
Lead Time and Fabrication Scheduling for Wide Frames
Wider spans mean larger members, and larger members are not always held in stock; they are often rolled or fabricated to order. The buyer should ask the supplier about the lead time for the main sections, the fabrication capacity available at the time of the order, and the milestones between order, drawings, fabrication, surface treatment, inspection and shipment. A wide-frame warehouse can have a longer lead time than a standard building, and the schedule should be agreed before the order.
Ask which activities are on the critical path, when the drawings are released for approval, and what happens if the approval is late. Also confirm how the delivery is phased, whether the members arrive in one shipment or several, and how the site receives them. The buyer should align the fabrication schedule with the foundation programme so that the steel does not arrive before the site is ready or after the erection team is idle.
Budgeting the Whole Building, Not Just the Frame
A warehouse project cost is made of the frame, the envelope, the foundations, the floor, the doors, the services and the erection, and the buyer should budget all of them together. Comparing frame prices alone creates a false picture, because one supplier may include items that another excludes, and because the cheapest frame may require a more expensive foundation or envelope. The buyer should ask for a complete package breakdown and should check each line against the project brief.
Ask the supplier to separate the supply items from the site items, and to state which works are assumed to be carried out by the buyer’s contractors. The buyer should then build a total project budget with the civil works, the services and the erection included, and use that budget for the decision. A warehouse that is bought as a complete project is a warehouse that is understood as a complete cost.
Permits, Approvals and the Documentation Trail
A warehouse project needs approvals before construction can begin, and the type of approval depends on the location, the size of the building and the local regulations. The buyer should identify the approvals required early, because the approval process takes time and because the approved drawings become the reference for the whole project. Ask whether the structural supplier provides the calculation reports and the drawings needed for the approval submission, and who is responsible for the local permit application.
The documentation trail should include every drawing revision, every approval letter and every design decision, kept in a single project file. When the site inspection, the insurance company or a future buyer asks how the building was approved and designed, the answer should be a complete folder rather than a memory. The buyer should agree with the supplier which documents are provided for the approval process and which are delivered with the building.
Site Access and the Delivery of Long Members
Wide-span frames contain long members, and long members are difficult to transport. The buyer should review the route from the port or the factory to the site: the road widths, the turning circles, the bridge limits and the overhead obstructions. A member that fits the building but not the road is a design problem that appears at the worst moment, when the truck is already on its way.
Ask the supplier how the longest members are transported, whether they are split into shorter pieces with site connections, and what offloading equipment the site must provide. Also plan the receiving area so that the members can be checked, stored and staged without blocking the site traffic. The delivery plan belongs in the contract so that the buyer and the supplier agree who arranges the transport and who bears the cost of a route that cannot accept the load.
Warranty, Maintenance and the Life of the Building
A prefabricated steel warehouse is a long-life asset, and the buyer should understand what the supplier warrants, for how long and under what conditions. The warranty usually covers the materials and the fabrication, but not the damage caused by site handling, foundation movement or changes to the design. The buyer should ask for the warranty terms in writing and should keep the maintenance records that the warranty may require.
Ask the supplier what maintenance is recommended for the frame, the envelope and the fixings, and what spares are available for the doors, the gutters and the panels. Also confirm who the buyer contacts for service and for warranty claims, and what documentation is needed to make a claim. A building with a clear warranty and a maintenance plan is an asset that can be managed; a building with neither is a risk that is discovered only when something fails.
Relevant building discussions
Buyers planning a similar project can compare the practical considerations discussed through Prefab Steel Warehouse Buildings, Steel Structure Building Design Guide for Overseas Projects, Steel Building Cost Guide: What Affects the Price?, What Information Is Needed for a Steel Building Quote?. The final specification should remain specific to the project site, the operating process, the governing requirements and the agreed allocation of responsibility between buyer, supplier and site contractors.
Conclusion
A clear-span decision made from the operating layout, the site conditions and the future plan is a decision the whole project can rely on. Document the dimensional basis, compare proposals on identical scope, and confirm the frame, foundation and envelope implications in writing before ordering. This discipline keeps the warehouse affordable to build and practical to run.
