Light Steel Structure Shopping Center Supplier
The Famous Prefab Light Steel Structure Shopping Center Supermarket Commercial Building offers direct design and manufacture with welding services. Ideal for supermarkets and shopping centers, this customizable steel building ensures durability and fast construction

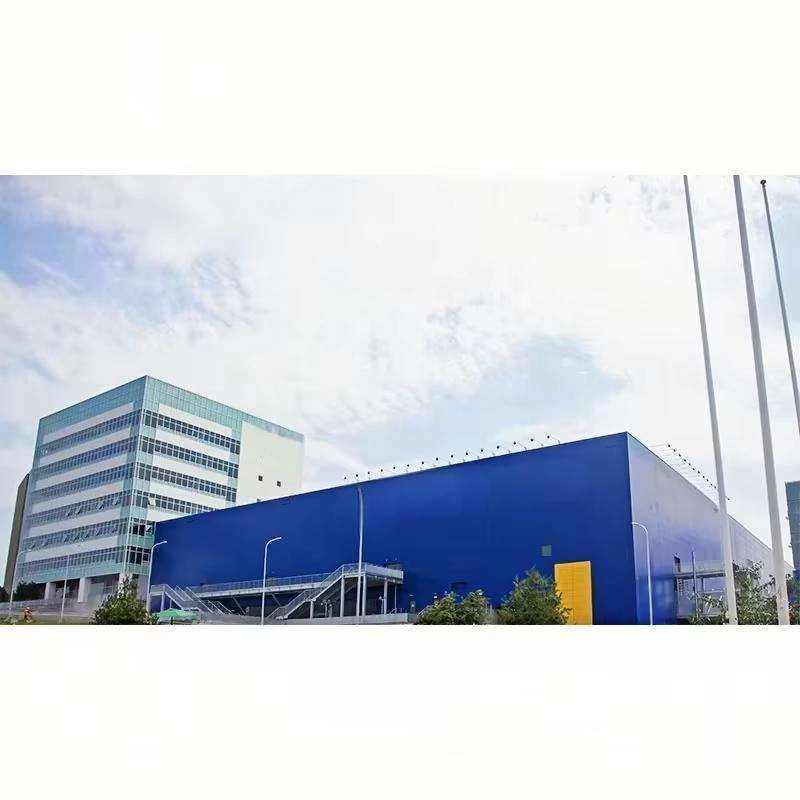

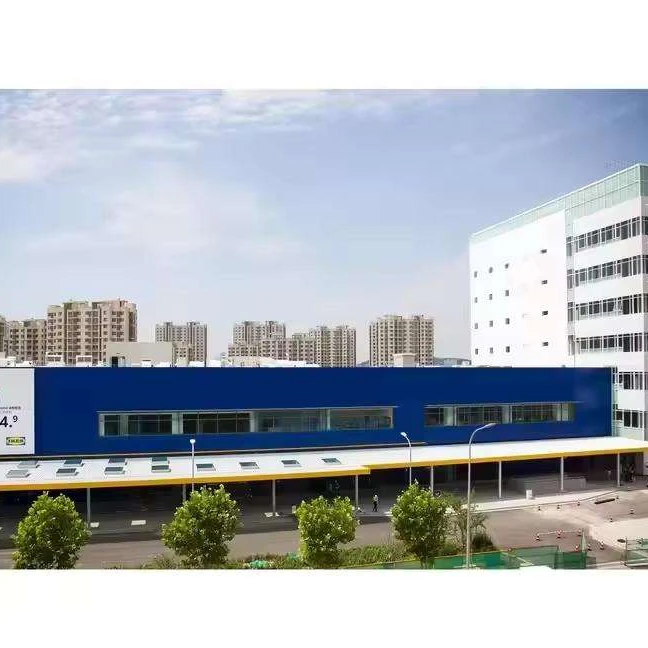

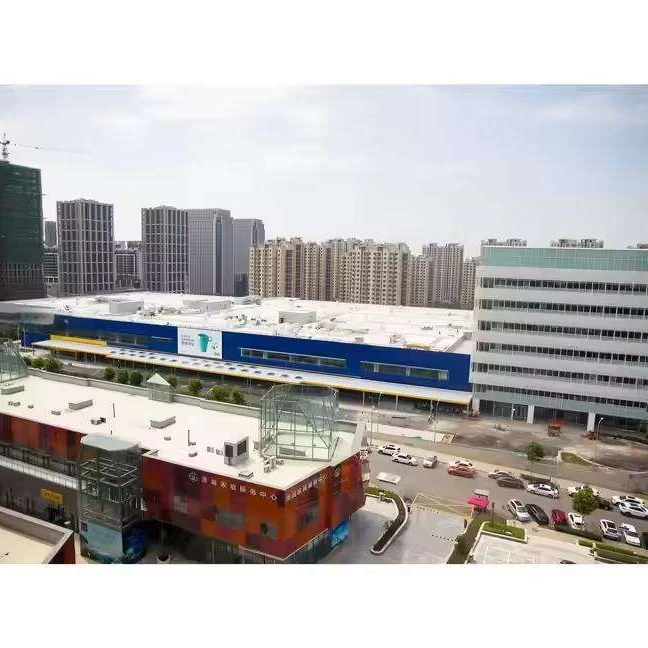

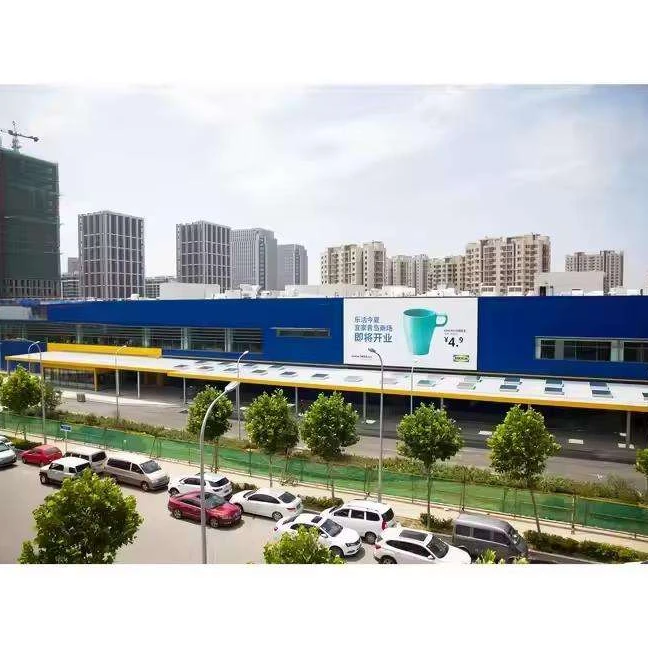

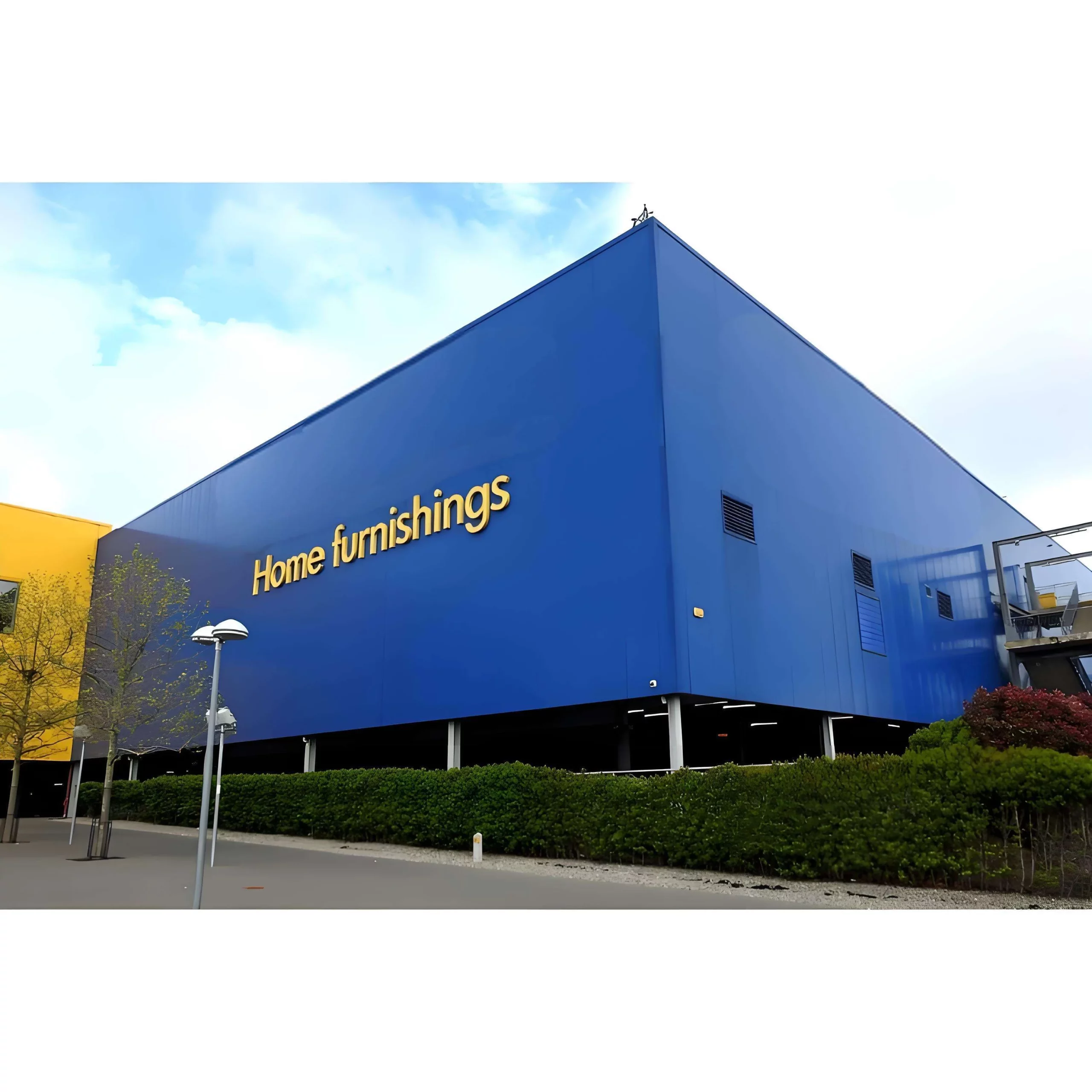

Famous Prefab Light Steel Structure Shopping Center Supermarket Commercial Building
Our prefab light steel structure building is designed for shopping centers, supermarkets, and commercial applications. We provide direct design and manufacture services, including professional welding, to deliver a high-quality, customizable solution.
Key Features
- Full customization to meet your specific requirements
- Project case studies available for reference
- Raw material identification and traceability for quality assurance
- Quality traceability throughout the manufacturing process
For more details, contact us via live chat or visit our Help Center. Safe and easy payments are supported.
Product Specifications
| Material | Q235B / Q355B Steel |
| Span | 12m – 60m (Customizable) |
| Height | 6m – 12m |
| Roof Type | Single/Double Slope, Curved |
| Wall Panel | EPS/Rock Wool/PU Sandwich Panel |
| Design Life | 50 Years |
| Surface Treatment | Hot-dip Galvanized / Painted |
| Wind Load | 0.5 KN/m² (Customizable) |
| Snow Load | 0.3 KN/m² (Customizable) |
Key Features
- Large clear span design for maximum storage space
- Fast construction – 30% faster than traditional buildings
- Cost-effective with 20-30% savings vs concrete structures
- Fully customizable dimensions and layout
- Fire-resistant and corrosion-resistant panels
- Free 3D design and engineering drawings included
Application Scenarios
- Logistics and distribution centers
- Manufacturing material storage
- Agricultural product warehousing
- E-commerce fulfillment centers
Installation Process
- Foundation: Concrete foundation per our engineering drawings
- Steel Frame: Erect main portal frames and secondary members
- Roof System: Install purlins, roof panels and flashing
- Wall System: Mount wall panels, windows and doors
- Finishing: Gutters, downspouts, accessories and inspection
Technical Specifications
| Parameter | Specification |
|---|---|
| Steel Grade | Q235B (A36) / Q355B (A572 Gr.50) |
| Span Range | 6m – 60m (clear span) |
| Eave Height | 3m – 12m |
| Wind Load | Up to 180 km/h (112 mph) |
| Snow Load | Up to 1.5 kN/m² |
| Seismic Load | Zone 4 (UBC) / 0.3g |
| Roof System | Single skin or insulated sandwich panel (50mm/75mm/100mm) |
| Wall System | Single skin or insulated sandwich panel |
| Corrosion Protection | Sandblasting Sa2.5 + Primer (Epoxy Zinc Rich) + Intermediate Coat + Topcoat |
| Design Standard | GB 50017 / AISC 360 / Eurocode 3 |
| Drawing Format | CAD (DWG) / PDF / 3D model |
| Lead Time | 30-45 days after drawing approval |
nFAQ
Q: What is the delivery time?
A: 30-45 days after design confirmation, depending on project size.
Q: Do you provide installation guidance?
A: Yes, we provide detailed installation drawings, manuals, and remote video guidance. On-site engineers available for large projects.
Q: Can the warehouse be expanded later?
A: Yes, our modular design allows easy future expansion in length or width.
Q: What certifications do you have?
A: ISO 9001, CE, SGS certified. All materials meet international standards.
