Types of Anchor Bolts for Steel Structure Construction: A Complete Guide
Anchor bolts are one of the most critical connection components in steel structure construction. They fix the steel frame to the concrete foundation and ensure the overall stability, safety, and wind resistance of the building.
In steel structure engineering, the performance of anchor bolts directly affects the load-bearing capacity, structural safety, and service life of the entire building. A proper selection and installation method is essential for every steel structure project.
For steel structure manufacturers and suppliers in the international market, understanding different types of anchor bolts is not only a technical requirement but also an important part of providing professional design, fabrication, and installation solutions for global clients.
Below, we will introduce the most commonly used anchor bolt types in steel structure projects and their practical applications.

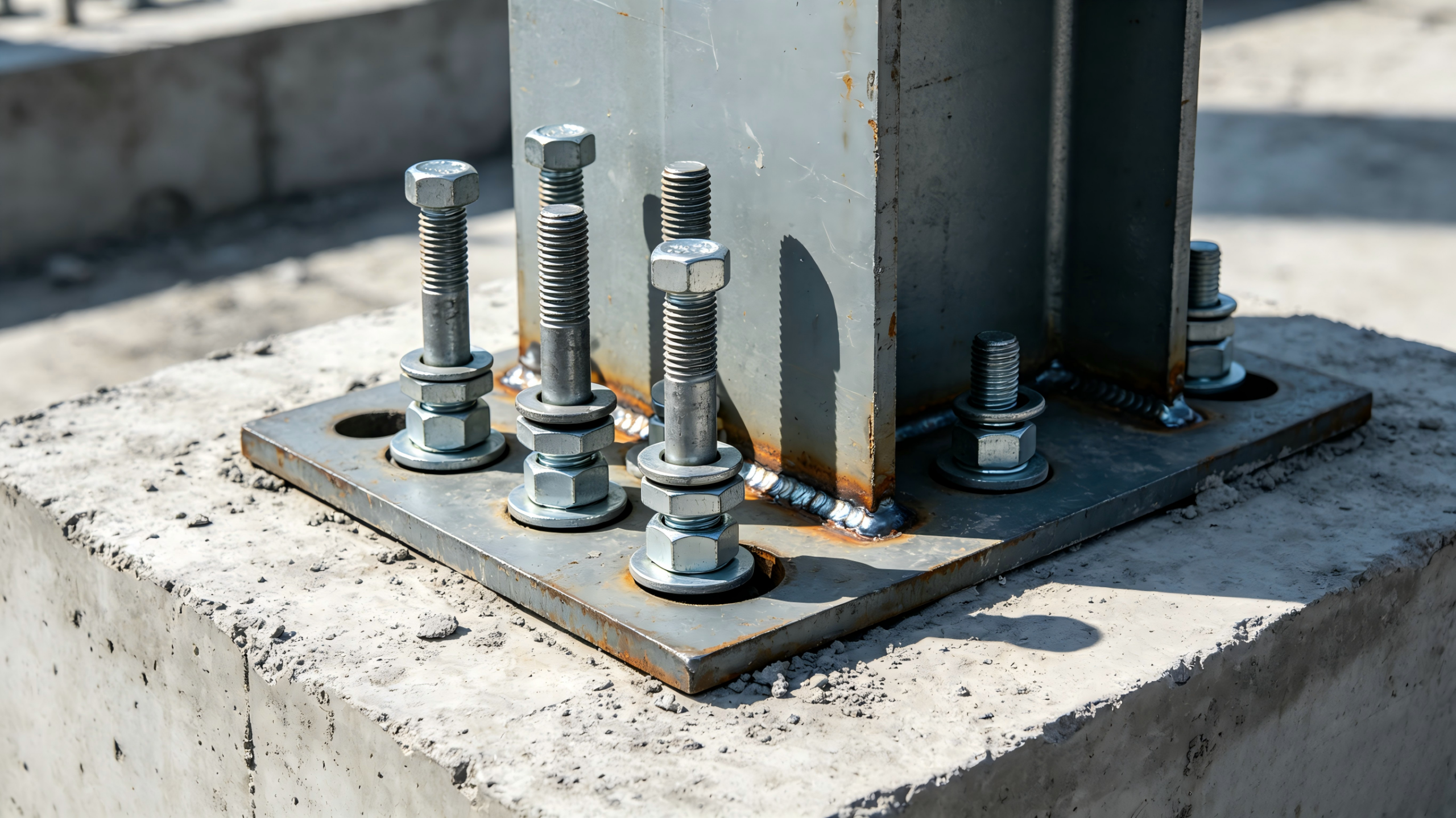

1. Embedded Anchor Bolts (Most Common Type in Steel Structures)
Embedded anchor bolts are the most widely used type in steel structure construction.
They are installed before or during the pouring of the concrete foundation. The bolts are embedded into the concrete and become firmly integrated with the foundation after curing, forming a strong and stable connection between the steel column base plate and the foundation.
Key Features:
- High structural stability and strong load-bearing capacity
- Excellent resistance to wind and seismic forces
- Long service life with minimal maintenance
- High reliability in heavy-duty steel structures
Typical Applications:
Embedded anchor bolts are widely used in:
- Steel structure warehouses
- Industrial workshops
- Steel factories
- Exhibition halls and stadiums
Because of their strong connection performance, they are the preferred solution for most standard steel structure projects.
2. Post-Installed Anchor Bolts (Flexible Retrofit Solution)
Post-installed anchor bolts are commonly used when the concrete foundation has already been completed and drilling is required for installation.

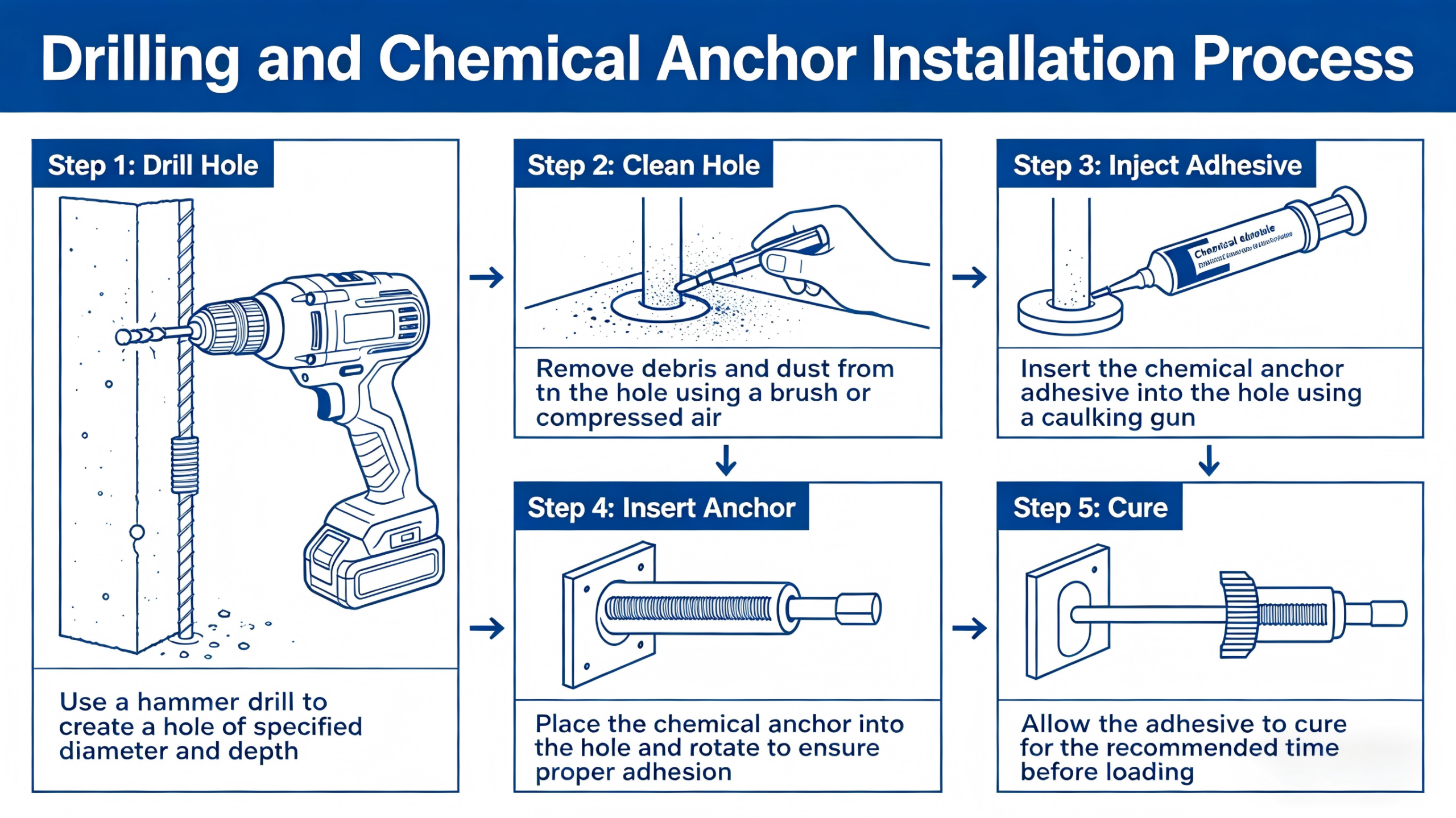

Unlike embedded bolts, these are installed by drilling holes into the existing concrete and fixing the bolts using chemical adhesives or mechanical expansion systems.
This type offers high flexibility and is widely used in renovation, expansion, or modification projects.
Key Features:
- Suitable for existing concrete structures
- Flexible installation without affecting finished foundations
- Quick modification and reinforcement solution
- High adaptability for complex site conditions
Important Considerations:
Although post-installed anchor bolts are very convenient, strict installation control is required. Factors such as drilling depth, bolt quality, and adhesive curing time must be carefully managed to ensure structural safety and load performance.
Typical Applications:
- Steel structure expansion projects
- Retrofit of existing factories or warehouses
- Equipment foundation reinforcement
- Structural modification projects

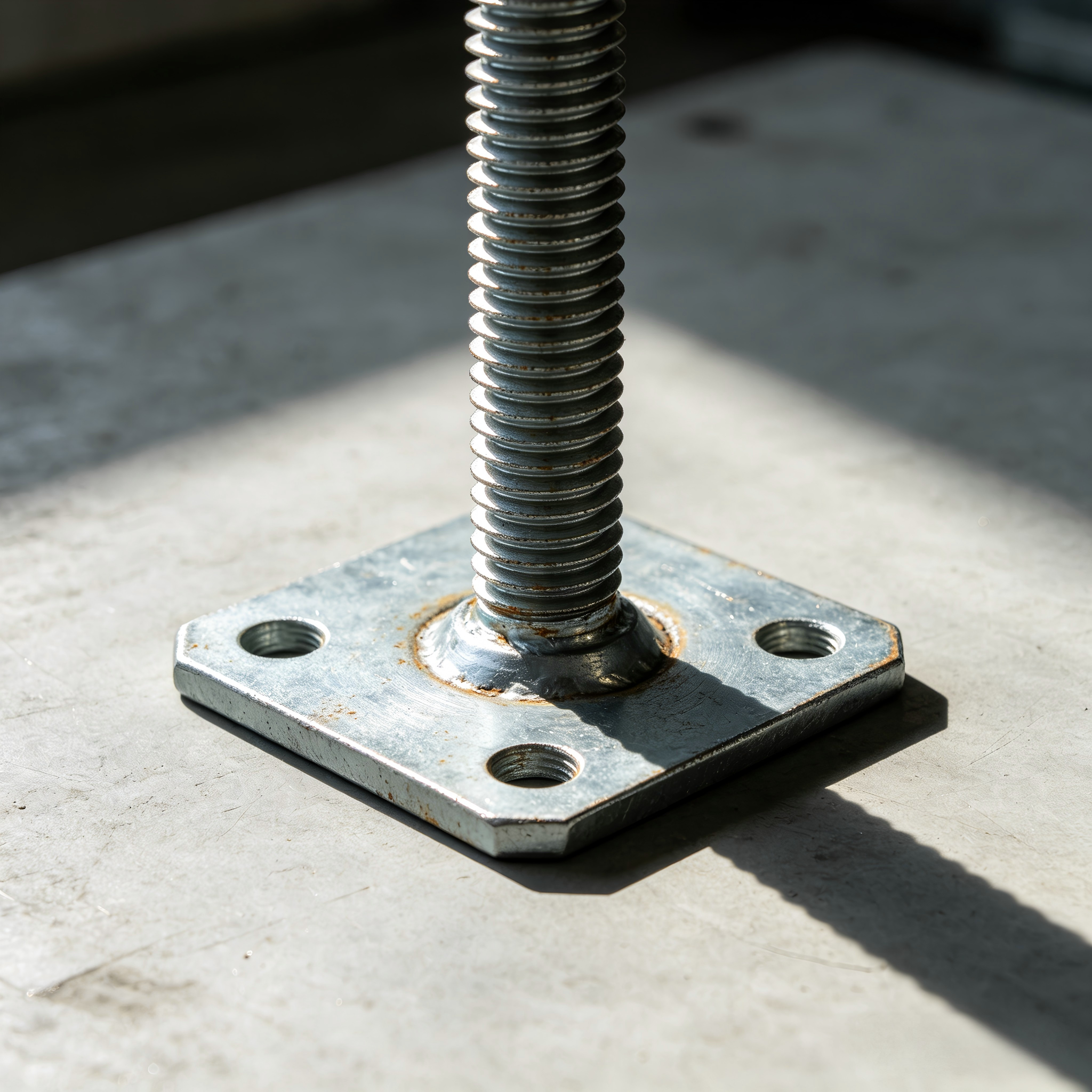

3. Straight Anchor Bolts (Basic and Economical Type)
Straight anchor bolts are one of the simplest forms of anchoring systems used in steel structure construction.
They are typically embedded directly into the concrete with a straight rod shape and fixed using nuts and washers at the top.
Key Features:
- Simple structure and easy installation
- Low cost and widely available
- Suitable for light to medium steel structures
Typical Applications:
- Small steel sheds
- Light industrial buildings
- Temporary steel structures
- Agricultural buildings

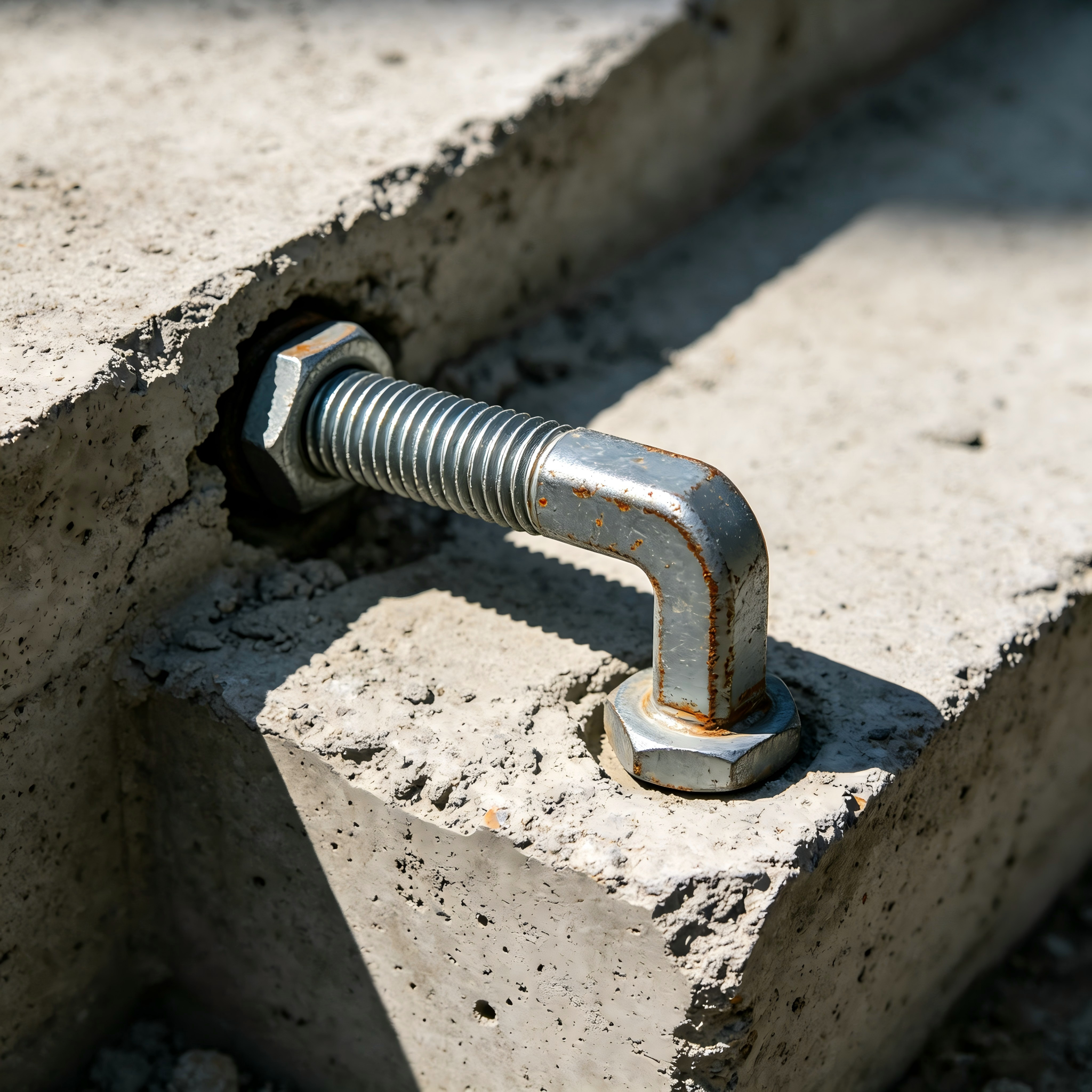

4. Bent Anchor Bolts (L-shaped or J-shaped Design)
Bent anchor bolts are designed with a curved end (L-shape or J-shape) to improve anchoring strength inside concrete.
The bent part increases the pull-out resistance, making it more stable than straight anchor bolts in many applications.
Key Features:
- Strong pull-out resistance
- Better grip inside concrete foundation
- Suitable for moderate to heavy loads
Typical Applications:
- Steel structure warehouses
- Machinery foundations
- Medium-span steel buildings
5. Choosing the Right Anchor Bolt for Steel Structure Projects
Selecting the correct anchor bolt type depends on several engineering factors:
- Structural load requirements (wind load, seismic load, vertical load)
- Foundation condition (new construction or existing concrete)
- Building type (warehouse, workshop, high-rise, etc.)
- Installation environment and budget
In real steel structure projects, engineers usually select anchor bolts based on structural calculations rather than standard preference.
Working with an experienced steel structure manufacturer can help ensure correct design, safe installation, and long-term structural stability.
Final Thoughts
Although anchor bolts are small components in a steel structure system, they play a critical role in ensuring overall building safety and performance.
A properly designed anchoring system not only improves structural stability but also extends the service life of the entire steel building.
If you are planning a steel structure project and need technical support for foundation design or anchor bolt selection, our engineering team can provide professional solutions based on your project requirements.
